2m - 4m 300kg Hydraulic Mobile Scissor Lift Vertical Lifting Work Platform
Standard configuration:
- AC power for lifting, manual walking
- Optional: Battery power/Dual power for lifting
- Optional: Battery power/diesel power for lifting
- Optional: Dual power for lifting
- Optional: Extension platform
- Optional: Explosion-proof electric system
- Optional: Solid tire
- Optional: Push & push outrigger
Description:
Mobile scissor lift platform is mainly used to lift workers to high place for repairs, maintenance, cleaning or installation and so on. You can move it easily to the right working area. The Mobile Scissor Lift can be also equipped with battery. With the battery, you don't need to connect AC power, also, this type of mobile scissor lift can be installed with the driven wheel to move it by hands without any hardness.
Specifications:
| Model | Platform size | Capacity | Lifting Height | Overall Dimension | Weight |
| DZM0.3-1.8 | 1150*600mm | 300kg | 1800mm | 1150*600*550mm | 300kg |
| DZM0.3-3 | 1150*600mm | 300kg | 3000mm | 1150*600*650mm | 380kg |
| DZM0.3-3.9 | 1150*600mm | 300kg | 3900mm | 1150*600*750mm | 450kg |
| DZM0.5-4 | 2100*830mm | 500kg | 4000mm | 2250*950*1200mm | 800kg |
| DZM0.5-6 | 2100*830mm | 500kg | 6000mm | 2250*950*1200mm | 880kg |
| DZM0.5-7 | 2100*830mm | 500kg | 6800mm | 2250*950*1280mm | 970kg |
| DZM0.5-8 | 2100*930mm | 500kg | 8000mm | 2250*1060*1380mm | 1050kg |
| DZM0.5-9 | 2100*930mm | 500kg | 9000mm | 2250*1060*1500mm | 1165kg |
| DZM0.5-10 | 2100*1230mm | 500kg | 10000mm | 2250*1350*1530mm | 1360kg |
| DZM0.3-11 | 2100*1230mm | 300kg | 11000mm | 2250*1350*1650mm | 1400kg |
| DZM0.5-12 | 2550*1530mm | 500kg | 12000mm | 2796*1670*1750mm | 2260kg |
| DZM0.5-14 | 2812*1530mm | 500kg | 14000mm | 3067*1730*1810mm | 2486kg |
| DZM0.3-16 | 2812*1600mm | 300kg | 16000mm | 3067*1810*2080mm | 3063kg |
| DZM0.3-18 | 3070*1600mm | 300kg | 18000mm | 3321*1810*2080mm | 3900kg |
| DZM1.0-4 | 2100*1200mm | 1000kg | 4000mm | 2250*1350*1180mm | 1250kg |
| DZM1.0-6 | 2100*1200mm | 1000kg | 6000mm | 2250*1350*1300mm | 1400kg |
| DZM1.0-8 | 2100*1200mm | 1000kg | 8000mm | 2250*1350*1420mm | 1585kg |
| DZM1.0-10 | 2100*1200mm | 1000kg | 10000mm | 2250*1350*1530mm | 1700kg |
| DZM1.0-12 | 2550*1530mm | 1000kg | 12000mm | 2796*1670*1750mm | 2560kg |
| DZM1.0-14 | 2812*1600mm | 1000kg | 14000mm | 3067*1810*1900mm | 3230kg |
| DZM2.0-6 | 2100*1530mm | 2000kg | 6000mm | 2250*1750*1530mm | 1780kg |
| DZM2.0-8 | 2100*1530mm | 2000kg | 8000mm | 2250*1750*1690mm | 2070kg |
| DZM2.0-10 | 2100*1530mm | 2000kg | 10000mm | 2250*1750*1850mm | 2250kg |
Application:
Mobile Scissor Lift is widely used in construction site, building maintenance, factory daily aerial work maintenance and various kinds of aerial work.
FAQ:
1. Can you customize product ?
Yes, of course. we have a lot of experienced engineers,They can design products according to customer's requirement.
2. How can you ensure your quality?
Before the delivery, every products will be tested. You are also warmly welcomed to come to our factory for inspection.
3. What is your delivery & after-sales service?
The delivery is according to order qty . We can answer user's question and solve their problem in 24 hrs per each day and give full technical support in time to all of our products.
4.How long will it take you to ship the goods?
It depends on the product you need, but we guarantee to ship it as soon as possible. Usually in 5-10 days.
5.What kinds of payment you accept?
We usually accept T/T, L/C, etc. If you prefer other payments terms, please feel free to discuss with us.
Product Tags:
|
|

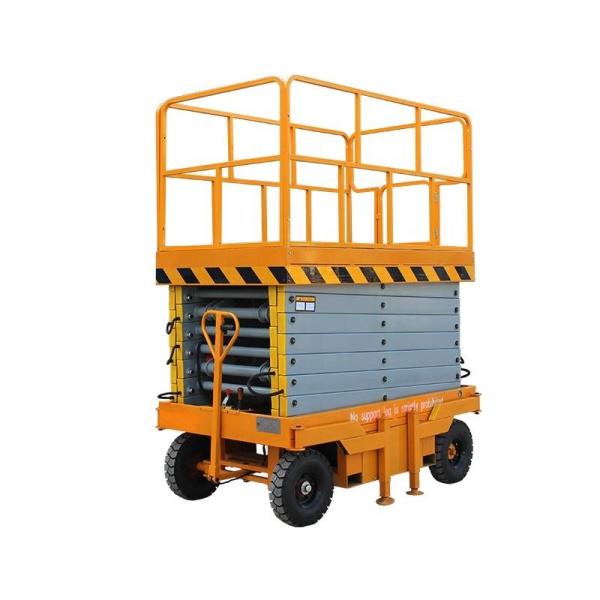

Orange Mobile Hydraulic Lift Platform 4m 300kg Portable Scissor Lift Images
|
